Booms

Greater Flexibility, Higher Capacity, Lower Costs

Skytron has been innovating equipment booms since the early 1990s and we continue to listen to our customers to enhance and improve their experiences in emergency rooms, operating rooms, ICUs, and more. Surgical storage carts and hospital headwalls can cause clutter and possibly trip hazards. Medical booms are designed to free the workspace and keep equipment clean and off of the ground. Skytron booms are also a great option for surgical lighting systems, making them an efficient and ideal solution for any facility.

Download Sales Sheet

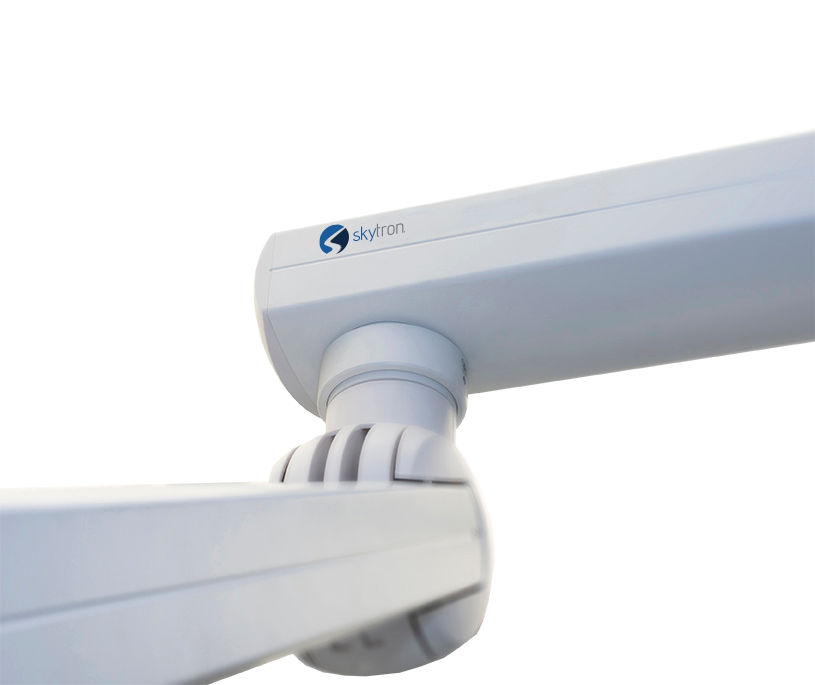

Skytron Medical Boom device arm socket close-up, white background

Model	Arms per Mount	Dual Arm Reach	Max Dual Arm Weight Capacity	Max # of Lightheads	Max # of Flat-Screen Displays	Max # Equip Carriers	Max # Lightweight Attachments
100 Series	1	67.5" - 110"	88 lbs	0	2	0	1
110 Series	3	77.5" - 110"	88 lbs	2	2	0	1
120 Series	4	87" - 110" (Upper) 77.5" - 98.5" (Lower)	88 lbs	2	4	0	2
200 Series	1	47" - 71"	459 lbs	0	0	1	0
300 Series	1	55" - 100.5"	642 lbs	0	0	1	0
310 Series	3	68" - 100.5"	472 lbs	2	0	1	0
320 Series	4	74.5" - 100.5" (Upper) 77.5" - 90.5" (Lower)	429 lbs (Upper) 88 lbs (Lower)	2	2	1	1
330 Series	2	68" - 100.5" (Upper) 54.5" - 87.5" (Lower)	429 lbs (Upper) 455 lbs (Lower)	1	0	2	0

Booms Designed for Your Unique Needs

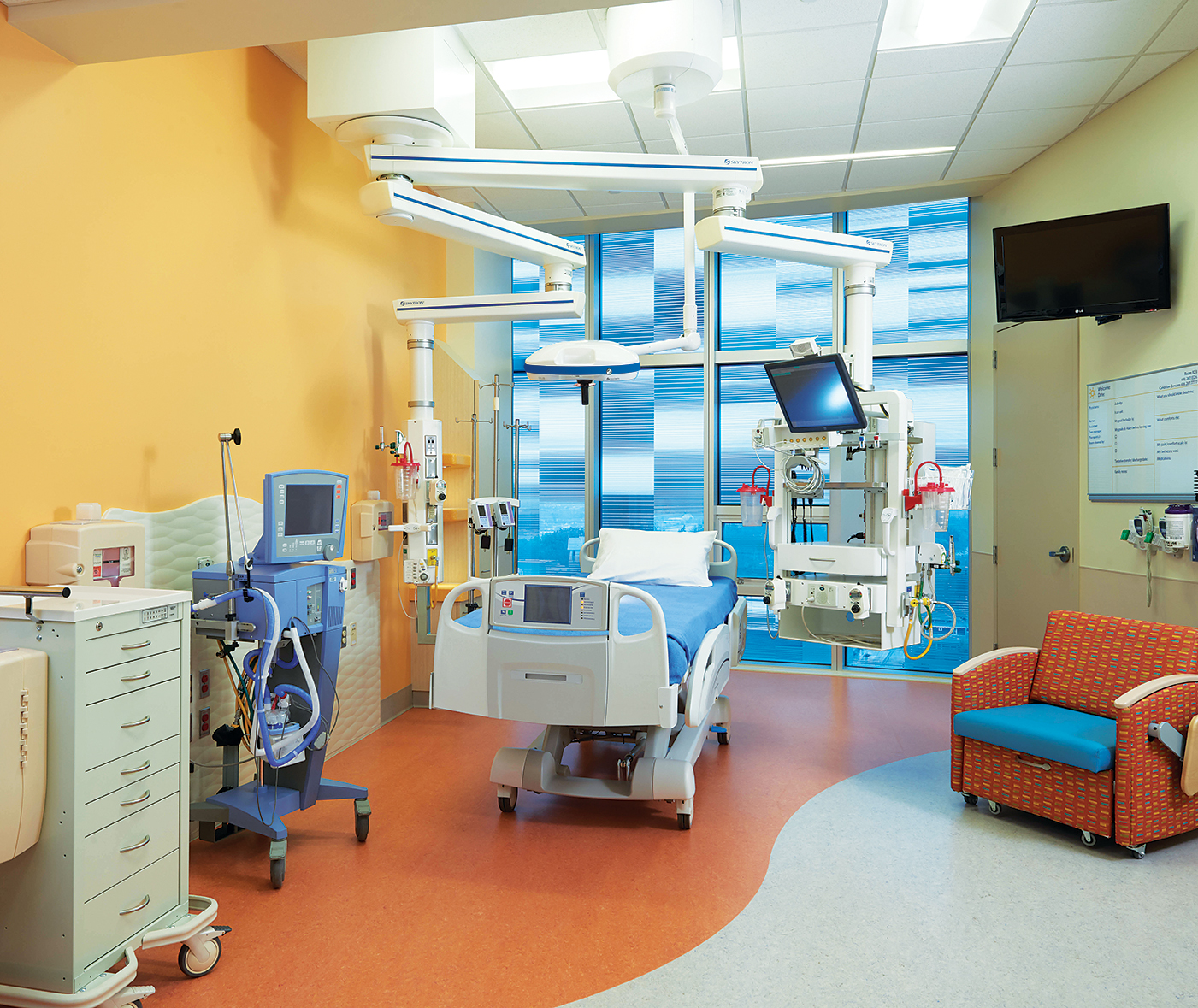

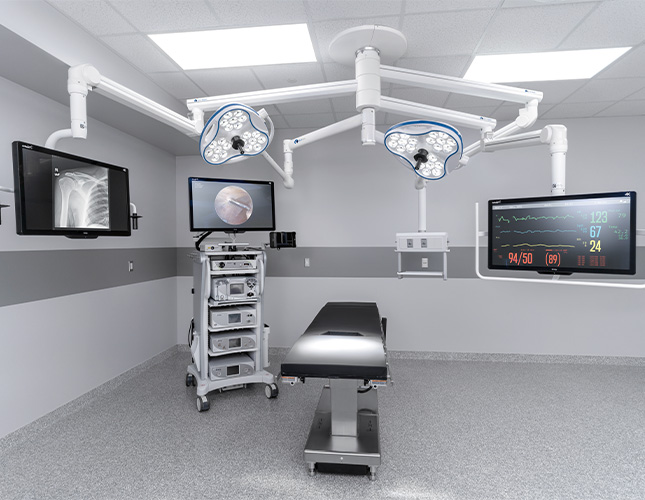

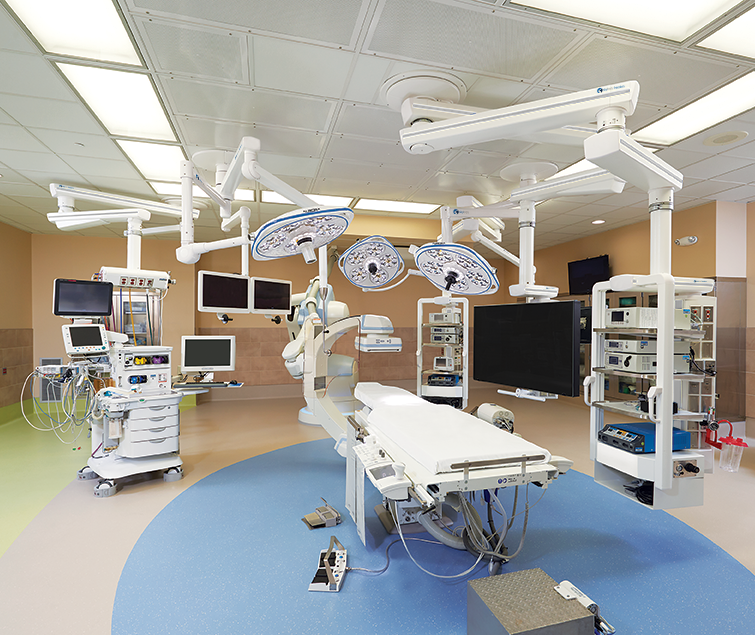

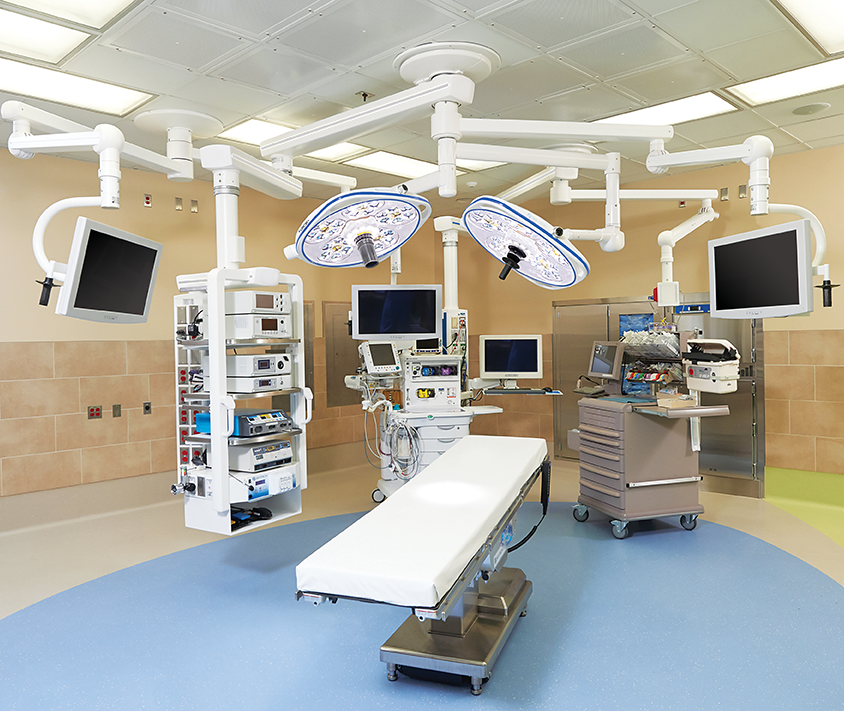

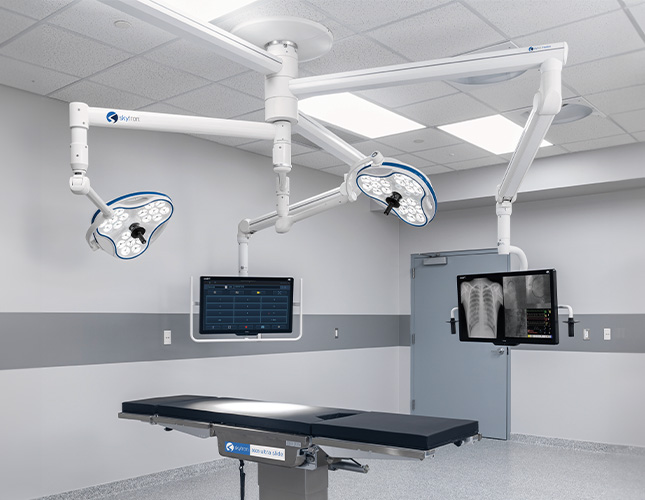

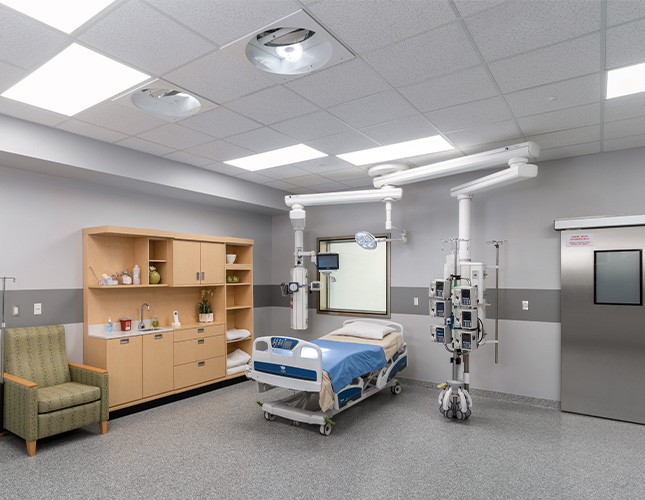

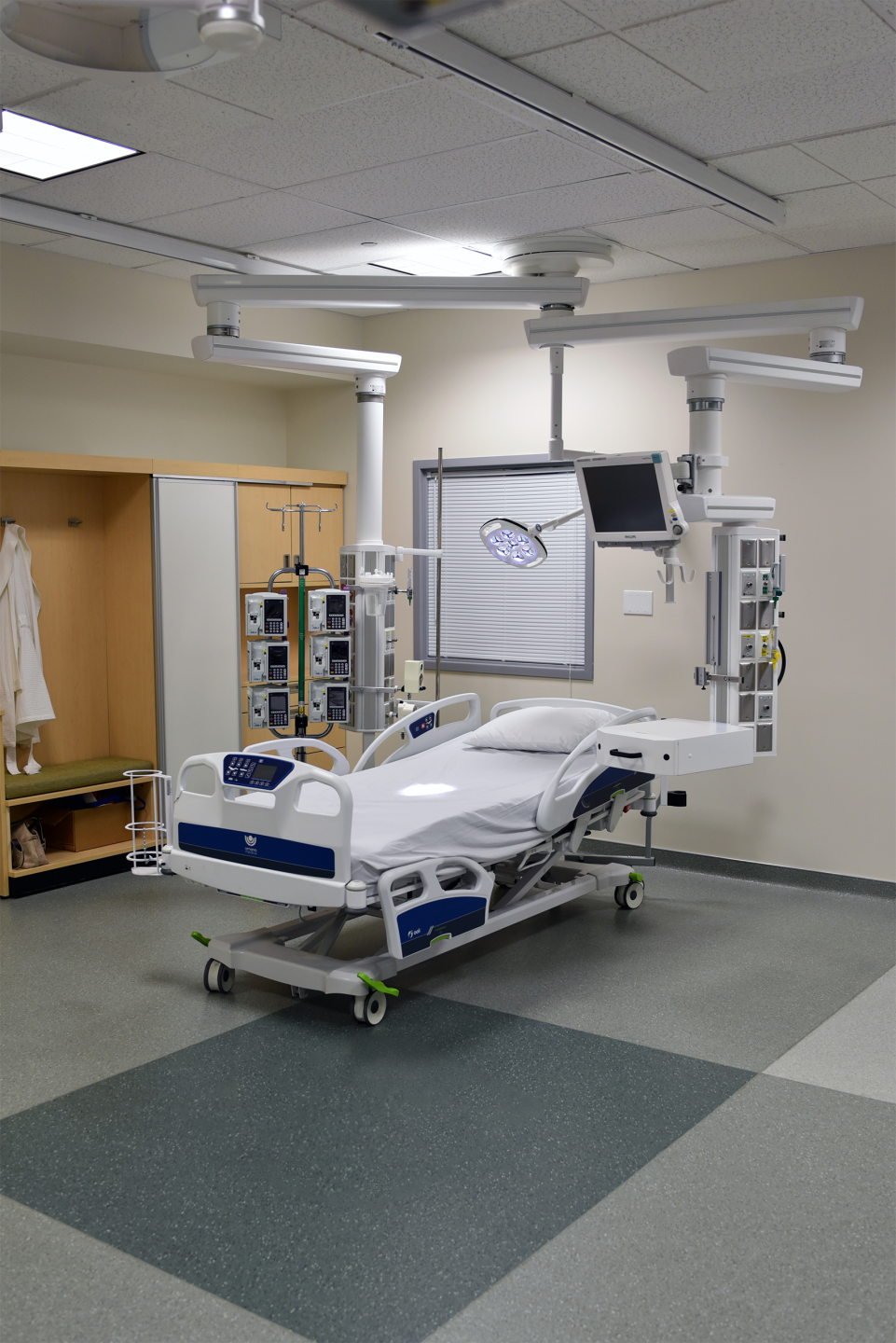

Our diverse design allows us to outfit your specific OR or specialty rooms from Intensive Care Units to Hybrid Rooms.

Take Advantage of Your Space

Skytron understands that space is valuable in any healthcare environment, our center-aligned carriers are designed to use 50% less space because they rotate within their own footprint.
