Clinical

Freedom

Equipment, Gases, Power, Lights, and Information All Where You Need It!
The Freedom boom system grew from watching and listening to critical care healthcare teams. We take pride in providing you a boom system that is not only innovative but offers an enhanced design that puts you in complete control during any procedure.
Jump to Specs
600x505 Freedom Boom 600x505 New Logo
600x505 Freedom1 600x505 New Logo
Skytron freedom equipment booms demonstrating articulating hub with multiple boom arms
Skytron Freedom Boom
Innovation is our focus and the Skytron Freedom Boom is a prime example of that. Learn about how Freedom can assist you with more extended reach, reduction of drift, and efficiently work within your footprint.
700x730 4 Stack New Logo
SafetyShield 50 X 50
Increased Safety
Freedom means having the ability to act or change without constraint. Our design lowers the risk of trip hazards or damages to equipment.
Flexible
Custom to Your Needs
Increased layout options give you the flexibility to get equipment exactly where you need it.
Comfortable Surgical Access
Keep the Focus on the Patient
With Skytron's Sure Set and Active Assist, Freedom Booms are easier to position and will not drift, keeping your attention where it needs to be.
Flexibility to Position What You Need, Where You Need It. How?
470x500 Freedom Carrier 470x500 New Logo
Flexibility to Position What You Need, Where You Need It. How?

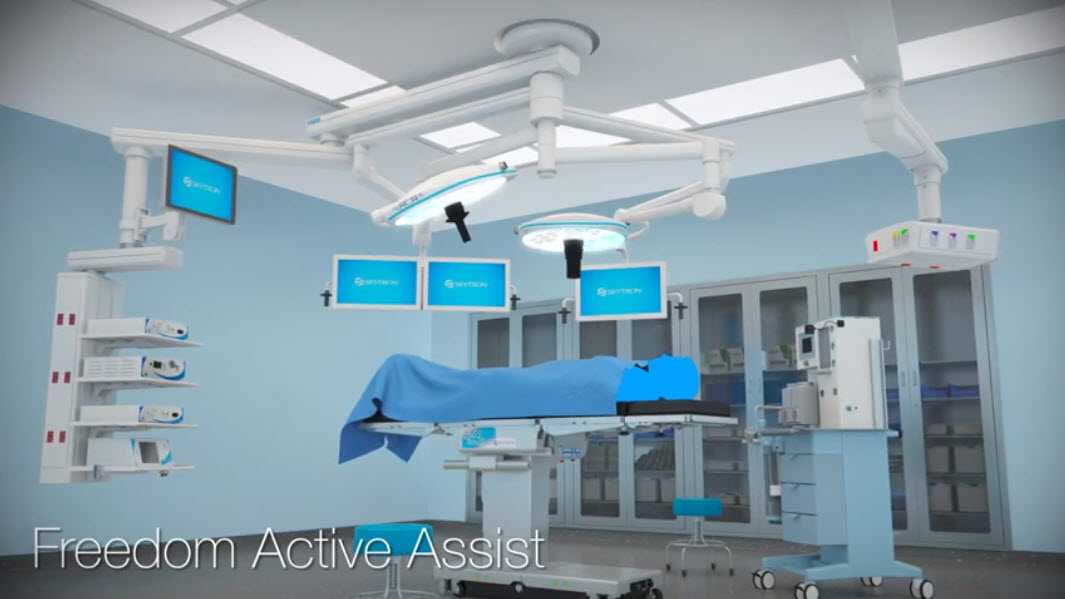

Active Assist
  • No buttons to push and easy to position
  • Grab anywhere and move easily
  • Position the equipment carrier, multiple displays, and lights anywhere without any worry of drifting
360° Access to All of Your Equipment.
Freedom medical boom offers five-stack mounting solution
360° Access to All of Your Equipment.

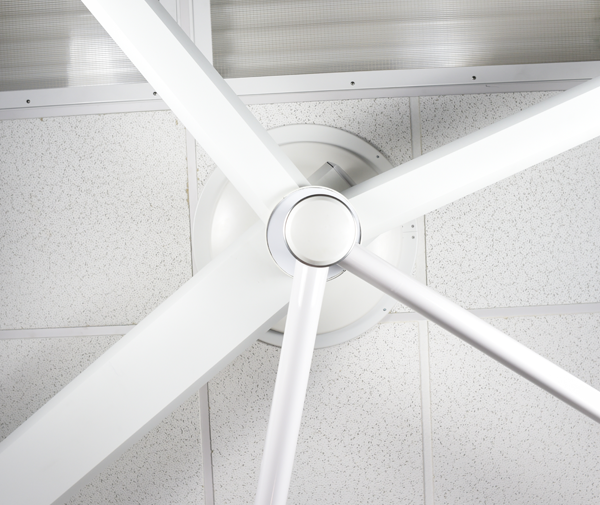

Five-Stack Mounting Solution
  • Equipment carrier, lights, and up to four flat-screen displays can be positioned anywhere around the patient
  • First arm provides equipment carrier
  • Second arm can provide a secondary power/gas source or flat-screen displays or x-ray shield
  • Third arm provides flat screen displays or x-ray shield (with the five-arm system)
  • Fourth and fifth arms can be surgical lights centered over the patient providing the easiest positioning around the surgical site

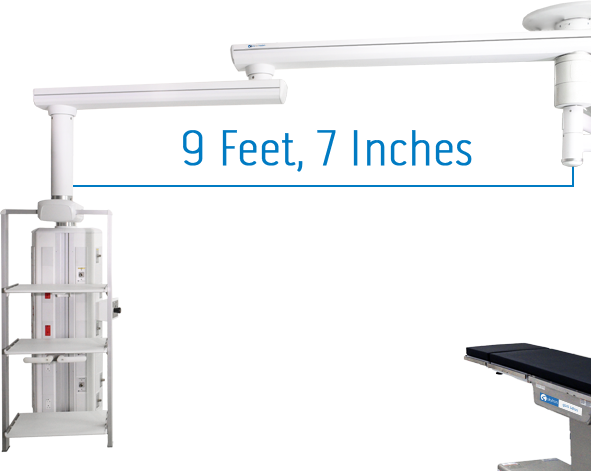

Reach for a Better Design
591x471 freedom-reach-image
Reach for a Better Design
Now Featuring Arm Lengths up to 9’ 7”
  • Freedom booms allow equipment to be positioned anywhere within a 19' diameter (283.5 sq ft) of the mounting structure
  • Optimize your workspace with more outlets, gases, and inputs for displays and integration
  • A longer reach also means that Freedom can easily work around other equipment such as patient lifts or imaging systems
Peace of Mind

Known for reliable equipment with a lower lifetime cost of ownership, Skytron delivers healthcare providers the assurance that they need. Freedom booms are constructed for utmost reliability and durability even in the most demanding clinical environments.

” Skytron booms offer us the greatest flexibility and performance of any ceiling-mounted boom designs we have ever tried. They are easy to operate, have no drift and allow us to seamlessly and easily add whatever equipment is necessary.”

– Matthew Meyer, Equipment Planner, Spectrum Health Systems

600x505 Freedom shot 600x505 New Logo
Versatility For Many Environments

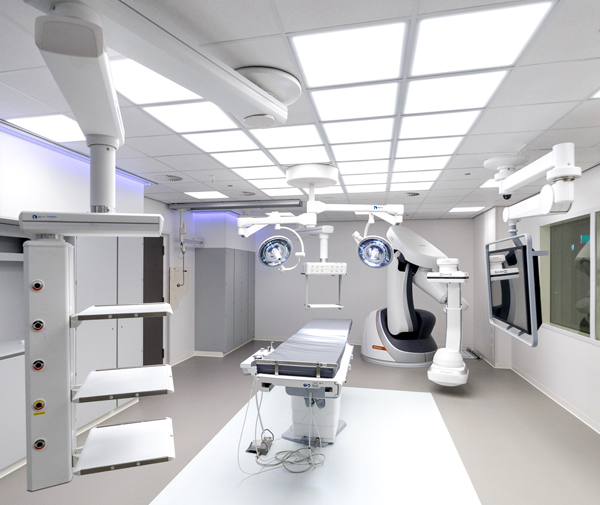

Hybrid Room

600x505 Freedom-Hybrid-600x505-1
Flexibility to Position What You Need, Where You Need It

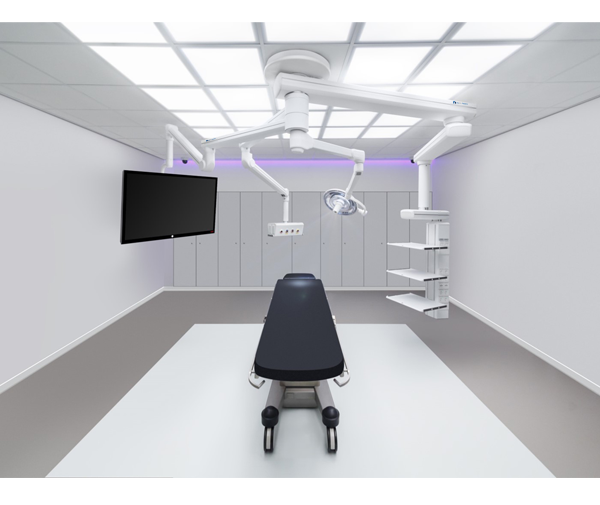

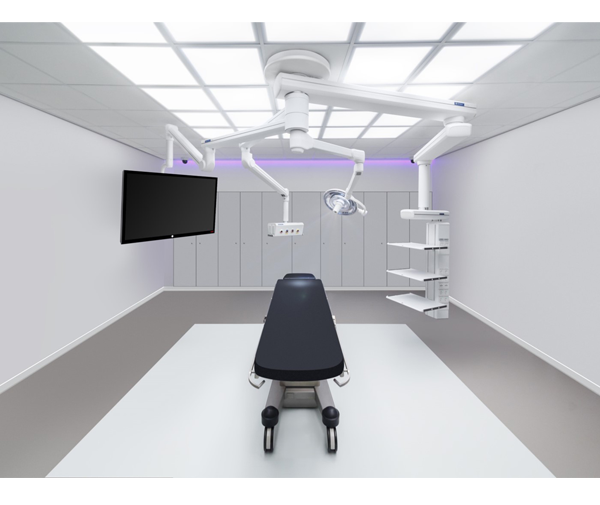

Operating Room

600x505 Freedom-OR-600x505-1
Flexibility to Position What You Need, Where You Need It

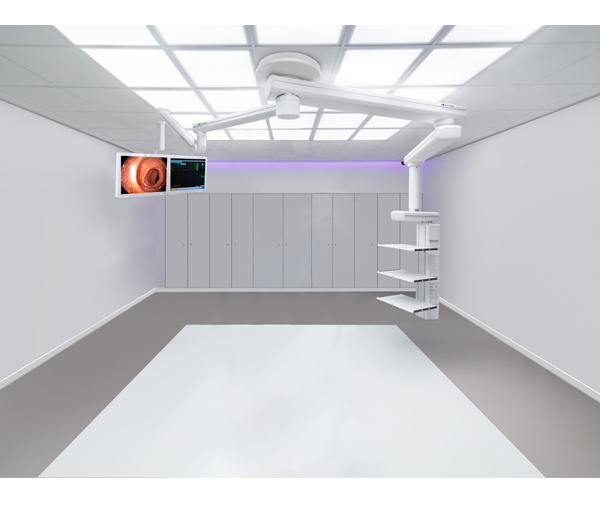

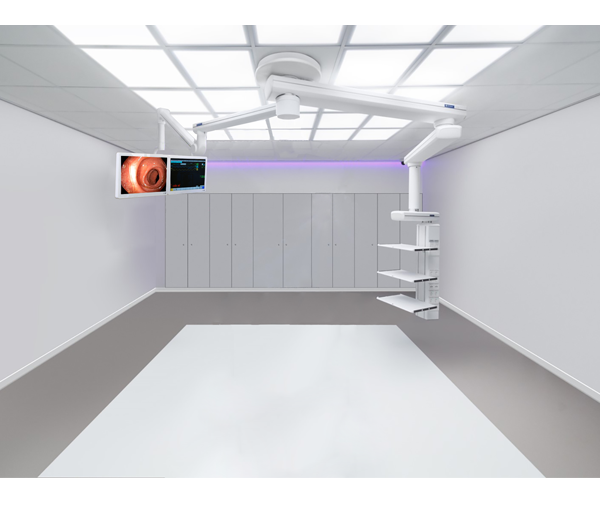

Gastrointestinal Laboratory

600x505 FReedom-GI-600x505-1
Flexibility to Position What You Need, Where You Need It

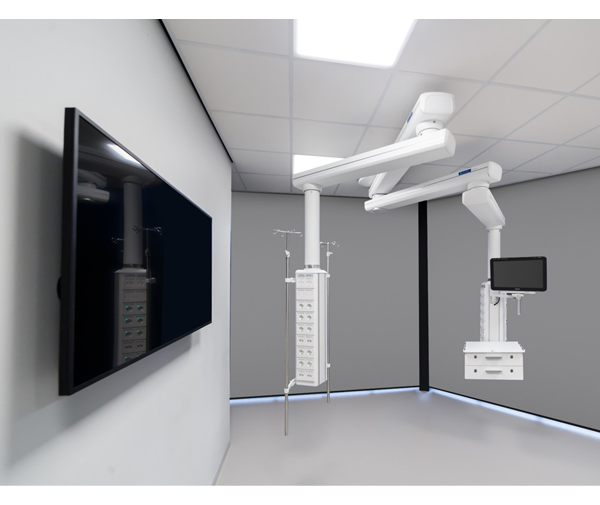

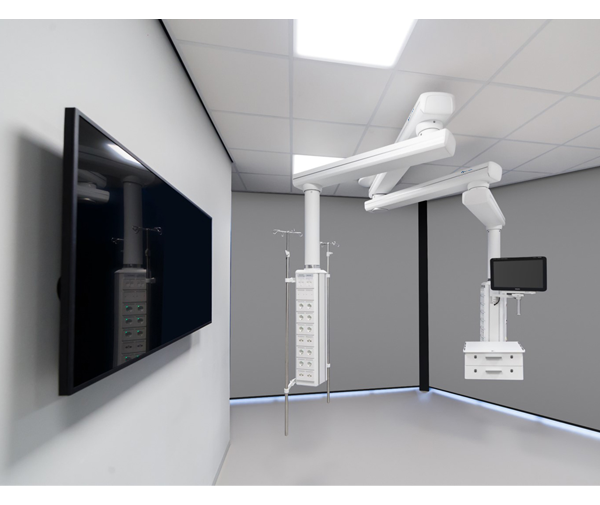

Intensive Care Unit

600x505 ICU-600x505-1
SeriesNumber of Boom Arm Sets per MountPosition in StackPrimary Arm Length in InchesSecondary Arm Length in InchesMax Weight Capacity in PoundsMax # of Light Heads per MountMax # of Displays per MountMax # of Equipment Carriers per MountMax # of Lightweight Attachments per Mount
1101136/43/50/57/64/71431082201
1202143/50/57/64/71431082201
1202236/43/50/57/64431082201
1303150/57/64/71431082201
1303243/50/57/64431082201
1303336/43/50/57431082201
2001133/40/4733/403820010
20H1133/40/47N/A5430010
3101140/47/54/61/6833/40/476342010
3202147/54/61/6833/40/475672010
3202236/43/50/57431082201
3303154/61/6833/40/475102010
3303243/50/57431082201
3303336/43/50431082201
3402140/47/54/61/6833/40/476342010
3402233/40/47/5433/40/475232010
3503161/6833/40/474631010
3503247/5433/40/471941010
3503336/43431081201
4102154 & 6533/35/40/43/47454+1084412
4203154 & 6433/35/40/43/47454+1084413
4203236/43431084201
4403154 & 6533/35/40/43/47454+1083412
4403233/4033/40/475263010
