Sharper Images with Simpler Operation

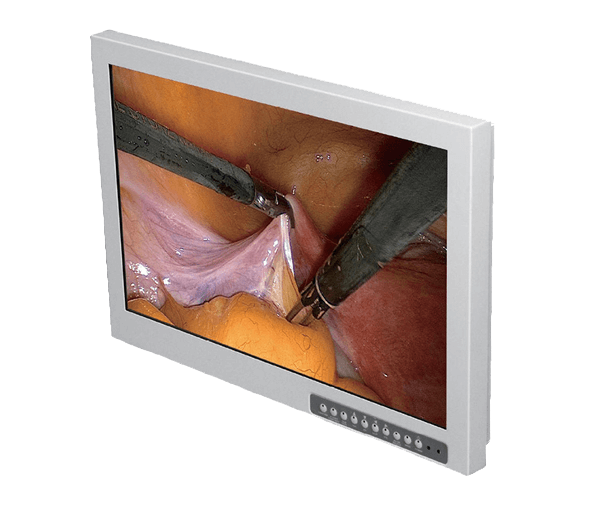

Skytron and Optik View bring a new level of clarity to the OR with LCD, high definition displays. The flat-screen displays translate sharp images from surgical video equipment and other sources, thereby enhancing the OR’s visibility and accuracy.

The Optik View displays allow images to be displayed in both Picture-in-Picture (PIP) and Picture-and-Picture (PAP) formats. In addition, the simple one-touch operation allows these viewing preferences to be selected easily and efficiently via the front panel or remote control.
Jump to Specs
Engineered for Sterile Environments
Optik View Displays are constructed with AR protective glass, IPX1 liquid resistance and no fan.
Accommodates Many Source Types
With their broad compatibility, the displays will work with almost any type of source and can accommodate DVI, HDMI, VGA, RGBS, 3G-SDI, Display Port, BNC, S-Video and Composite source types.
Various Size Configurations are Available
Optik View's slim design will fit effortlessly into any surgical space.
105011051050110610150001105022231015000710551127-2
Dimensions24" Wide Angle Screen26" Wide Angle Screen50" Wide Angle Screen31.5" Wide Angle Screen40" Wide Angle Screen58" Wide Angle Screen
Resolution1920x12001920x10801920x10803840x21603840x21603840x2160
Accommodates source typesDVI, HDMI, Display Port, VGA, Composite, S-Video, RGBS, YPbPr, HDSDI, 3G-SDIDVI, HDMI, Display Port, VGA, Composite, S-Video, RGBS, YPbPr, HDSDI, 3G-SDIDVI-D, HDMI, Display Port, VGA, Composite, S-Video, RGBS, YPbPr, HDSDI, 3G-SDIDVI-D, HDMI, Display Port, VGA, Composite, S-Video, RGBS, YPbPr, HDSDI, 3G-SDIDVI-D, HDMI, Display Port, VGA, Composite, S-Video, RGBS, YPbPr, HDSDI, 3G-SDIDVI-D, HDMI, Display Port, VGA, Composite, S-Video, RGBS, YPbPr, HDSDI, 3G-SDI
AR protective glassYesYesYesYesYesYes
Sterile Field CompatibleYesYesYesYesYesYes
Rounded CornersYesYesYesYesYes
Edge to Edge Screen For Easy CleaningYesYesYesYesYes
IP RatingIP65IP65IP65IP65IP65IP65
LED BacklitYesYesYesYesYesYes
One-Touch Input SelectionYesYesYesYesYesYes
3 Year WarrantyYesYesYesYesYesYes
